Use Case: Deutsch–Jozsa and Shor’s Algorithm

The Deutsch–Jozsa algorithm determines whether a given function is constant or balanced using only a single query. In this example, a 3-qubit input register and one ancilla qubit are used. A constant oracle is applied, and the expected measurement outcome on the input qubits is 000, indicating that the function is constant.

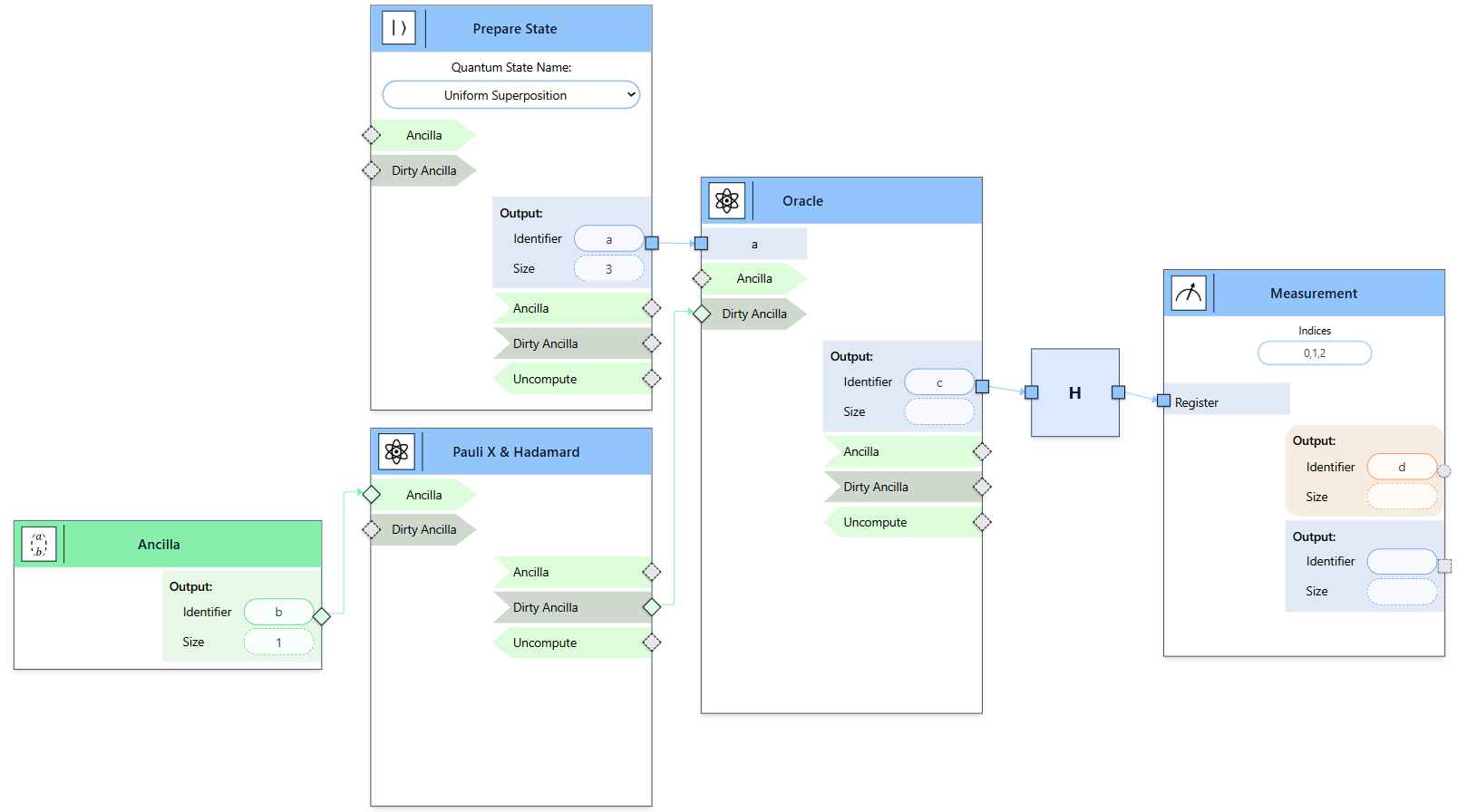

Deutsch–Jozsa algorithm modeled in the tool

Deutsch–Jozsa algorithm modeled in the tool

Shor’s algorithm is used for integer factorization. Let n be the number to be factored, and m the smallest integer such that 2^m is at least n^2. The quantum function computes t^x mod n, where t is an integer coprime to n. The quantum circuit uses two registers: the first with m qubits for the x values, and the second register to store the result using ancilla qubits. A quantum Fourier transform is then applied, followed by a measurement on the first register.

Shor’s algorithm modeled in the tool

Shor’s algorithm modeled in the tool
